Mono

Features and Benefits
  • High flow fluids membrane for fast flow rate and long filter life, two air vents for instant air elimination and quick priming.
  • Compatible with gravity and pump sets.
  • Hyper-phobic air vents are compatible with lipids, alcohol and oncology drugs.
  • 0.2μm filter is retentive of B. diminuta at 10^7 CFU/cm2 EFA as a sterilizing grade filter per ASTM F838 test methods. 1.2μm filter is retentive of candida albicans at 10^7 CFU/ cm2 EFA. 5.0μm filter removes 5μm latex particles at an efficiency greater than 90%.
  • Standard or customized connector fit a variety of tubing configurations.
  • Custom printing options on filter housing for better product identification and brand identification.
  • Amber filter housing available for photosentive drugs.

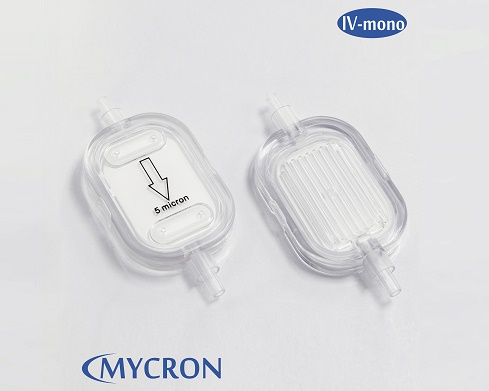

kids pediatric infusion filter, IV filter, IV-Mono

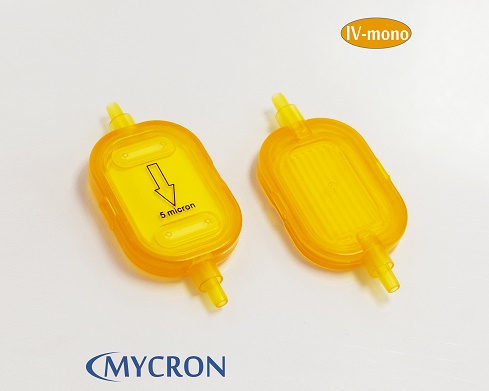

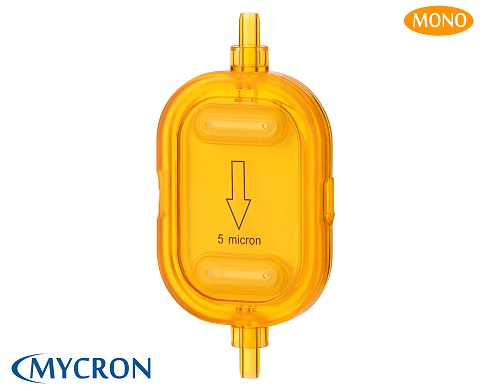

amber kids pediatric infusion filter, IV filter, IV-Mono

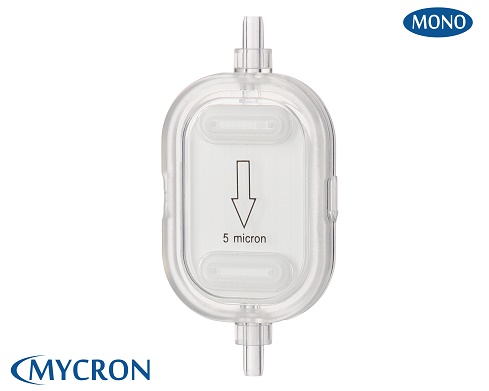

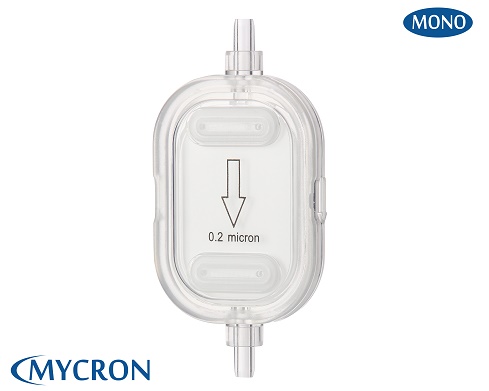

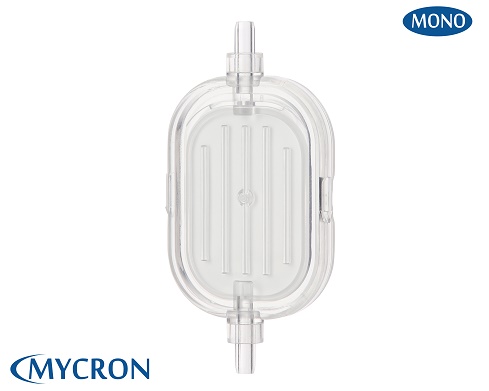

IV-Mono filters are featured with single layer design, it’s integrated with 1 fluids membrane and 2 air vent membranes.


Aqueous IV solutions
TPN and lipids solutions
Chemo therapy solutions
Antibiotic therapy solutions
Apheresis solutions
Portable and PCA pumps
Specifications

Biological Safety

Materials of construction comply with USP Class VI

Biological Reactivity Tests In Vivo<88>  and ISO10993.

Dimensions

Length: 61mm (42mm filter body)      Weight: 5.5g

Width: 30mm                                          Thickness: 6.5mm

Materials of Construction

Filter Media: high flow hydrophilic PES

Air Vent: hydrophobic PTFE 0.02μm

Housing: Clear medical grade ABS

Minimum Water Flow Rate

0.2μm: ≥ 20 mL/min at 0.1bar (1m head pressure)

1.2μm: ≥ 100 mL/min at 0.1bar (1m head pressure)

5.0μm: ≥ 130 mL/min at 0.1bar (1m head pressure)

Effective Filtration Area (EFA)

6.03 cm2 PES fluids membrane

0.8 cm2 PTFE air vent membrane

Inlet/Outlet Connections

Inlet: TUBE I.D. 2.0mm x O.D. 3.4~3.6mm

Outlet: TUBE I.D. 2.0mm x O.D. 3.4~3.6mm

Maximum Operating Pressure

3.5 bar

Sterilization Compatibility

EtO, gamma irradiation (25kGy)

Ordering Information

Product Code

Pore Size

Descriptions

IVM02

0.2μm

Standard Tube Connections, Clear Housing

IVM02A

0.2μm

Standard Tube Connections, Amber Housing

IVM12

1.2μm

Standard Tube Connections, Clear Housing

IVM12A

1.2μm

Standard Tube Connections, Amber Housing

IVM50

5.0um

Standard Tube Connections, Clear Housing

IVM50A

5.0um

Standard Tube Connections, Amber Housing
